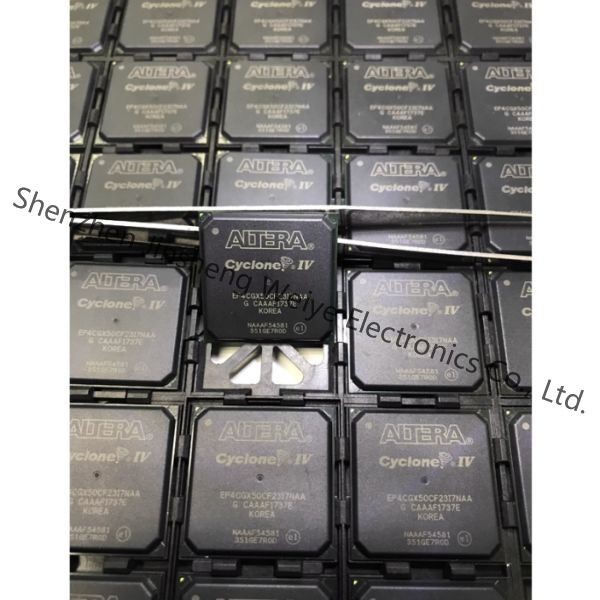

Product Details
Altera’s new Cyclone® IV FPGA device family extends the Cyclone
FPGA series leadership in providing the market’s lowest-cost,
lowest-power FPGAs, now with a transceiver variant. Cyclone IV
devices are targeted to high-volume, cost-sensitive applications,
enabling system designers to meet increasing bandwidth requirements
while lowering costs.
Cyclone IV Device Family Features
The Cyclone IV device family offers the following features:
■ Low-cost, low-power FPGA fabric:
■ 6K to 150K logic elements
■ Up to 6.3 Mb of embedded memory
■ Up to 360 18 × 18 multipliers for DSP processing intensive
applications
■ Protocol bridging applications for under 1.5 W total power
■ Cyclone IV GX devices offer up to eight high-speed transceivers
that provide:
■ Data rates up to 3.125 Gbps
■ 8B/10B encoder/decoder
■ 8-bit or 10-bit physical media attachment (PMA) to physical
coding sublayer (PCS) interface
■ Byte serializer/deserializer (SERDES)
■ Word aligner
■ Rate matching FIFO
■ TX bit slipper for Common Public Radio Interface (CPRI)
■ Electrical idle
■ Dynamic channel reconfiguration allowing you to change data rates
andprotocols on-the-fly
■ Static equalization and pre-emphasis for superior signal
integrity
■ 150 mW per channel power consumption
■ Flexible clocking structure to support multiple protocols in a
single transceiver block
■ Cyclone IV GX devices offer dedicated hard IP for PCI Express
(PIPE) (PCIe) Gen 1:
■ ×1, ×2, and ×4 lane configurations
■ End-point and root-port configurations
■ Up to 256-byte payload
■ One virtual channel
■ 2 KB retry buffer
■ 4 KB receiver (Rx) buffer
■ Cyclone IV GX devices offer a wide range of protocol support:
■ PCIe (PIPE) Gen 1 ×1, ×2, and ×4 (2.5 Gbps)
■ Gigabit Ethernet (1.25 Gbps)
■ CPRI (up to 3.072 Gbps)
■ XAUI (3.125 Gbps)
■ Triple rate serial digital interface (SDI) (up to 2.97 Gbps)
■ Serial RapidIO (3.125 Gbps)
■ Basic mode (up to 3.125 Gbps)
■ V-by-One (up to 3.0 Gbps)
■ DisplayPort (2.7 Gbps)
■ Serial Advanced Technology Attachment (SATA) (up to 3.0 Gbps)
■ OBSAI (up to 3.072 Gbps)
■ Up to 532 user I/Os
■ LVDS interfaces up to 840 Mbps transmitter (Tx), 875 Mbps Rx
■ Support for DDR2 SDRAM interfaces up to 200 MHz
■ Support for QDRII SRAM and DDR SDRAM up to 167 MHz
■ Up to eight phase-locked loops (PLLs) per device
■ Offered in commercial and industrial temperature grades
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | Intel / Altera |
| Product Category | FPGAs (Field Programmable Gate Array) |
| Series | Cyclone® IV GX |
| Product | Cyclone IV GX |
| Packaging | Tray |
| Mounting-Style | SMD/SMT |
| Tradename | Cyclone IV |
| Package-Case | 672-BGA |
| Operating-Temperature | -40°C ~ 100°C (TJ) |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 1.16 V ~ 1.24 V |
| Supplier-Device-Package | 672-FBGA (27x27) |
| IC Number of Gates | - |
| Number-of-I-O | 310 I/O |
| Data-Rate | 3.125 Gbps |
| Number-of-LABs-CLBs | 3118 |
| Number-of-Logic-Elements-Cells | 49888 |
| Total-RAM-Bits | 2562048 Bits |
| Maximum Operating Temperature | + 100 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1 V to 1.2 V |
| Maximum-Operating-Frequency | 200 MHz |
| Package-Case | FBGA-672 |
| Number-of-Transceivers | 8 Transceivers |
| Input/output | 310 I/O |
| Number-of-Logic-Array-Blocks-LABs | 3118 |
| Number-of-Logic-Elements | 49888 Logic Elements |
| Total-Memory | 2502 kbit |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
EP4CGX50DF27C8
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C8 |
EP4CGX50DF27C6N
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C6N |
EP4CGX50DF27C7N
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C7N |
EP4CGX50DF27C6
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C6 |
EP4CGX50DF27C7
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C7 |
EP4CGX50DF27C8N
Programmable Logic | Field Programmable Gate Array, 3118 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27C8N |
EP4CGX50DF27I7N
Programmable Logic | Field Programmable Gate Array, 49888 CLBs, 472.5MHz, 49888-Cell,
PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, FBGA-672 | Intel Corporation | EP4CGX50DF27I7N vs EP4CGX50DF27I7N |
Descriptions
FPGA Cyclone庐 IV GX Family 49888 Cells 60nm Technology 1.2V 672-Pin
FBGA
FPGA - Field Programmable Gate Array FPGA - Cyclone IV GX 3118 LABs
310 IOs
