Product Details
General Description
Microsemis 40MX and 42MX families offer a cost-effective design
solution at 5V. The MX devices are single-chip solutions and
provide high performance while shortening the system design and
development cycle. MX devices can integrate and consolidate logic
implemented in multiple PALs, CPLDs, and FPGAs. Example
applications include high-speed controllers and address decoding,
peripheral bus interfaces, DSP, and co-processor functions.
Features
High Capacity
• Single-Chip ASIC Alternative
• 3,000 to 54,000 System Gates
• Up to 2.5 kbits Configurable Dual-Port SRAM
• Fast Wide-Decode Circuitry
• Up to 202 User-Programmable I/O Pins
High Performance
• 5.6 ns Clock-to-Out
• 250 MHz Performance
• 5 ns Dual-Port SRAM Access
• 100 MHz FIFOs
• 7.5 ns 35-Bit Address Decode
HiRel Features
• Commercial, Industrial, Automotive, and Military Temperature
Plastic Packages
• Commercial, Military Temperature, and MIL-STD-883 Ceramic
Packages
• QML Certification
• Ceramic Devices Available to DSCC SMD
Ease of Integration
• Mixed-Voltage Operation (5.0V or 3.3V for core and I/Os), with
PCI-Compliant I/Os
• Up to 100% Resource Utilization and 100% Pin Locking
• Deterministic, User-Controllable Timing
• Unique In-System Diagnostic and Verification Capability with
Silicon Explorer II
• Low Power Consumption
• IEEE Standard 1149.1 (JTAG)Boundary Scan Testing
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | ACTEL |
| Product Category | FPGAs (Field Programmable Gate Array) |
| Series | MX |
| Unit-Weight | 0.239083 oz |
| Mounting-Style | SMD/SMT |
| Tradename | Actel |
| Package-Case | 84-LCC (J-Lead) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 3 V ~ 3.6 V, 4.75 V ~ 5.25 V |
| Supplier-Device-Package | 84-PLCC (29.31x29.31) |
| IC Number of Gates | 24000 |
| Number-of-I-O | 72 I/O |
| Number-of-LABs-CLBs | |
| Number-of-Logic-Elements-Cells | |
| Total-RAM-Bits | - |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Operating-Supply-Voltage | 3.3 V 5 V |
| Maximum-Operating-Frequency | 172 MHz |
| Package-Case | PLCC-84 |
| Input/output | 72 I/O |
Form,Package,Functional compatible component
Descriptions

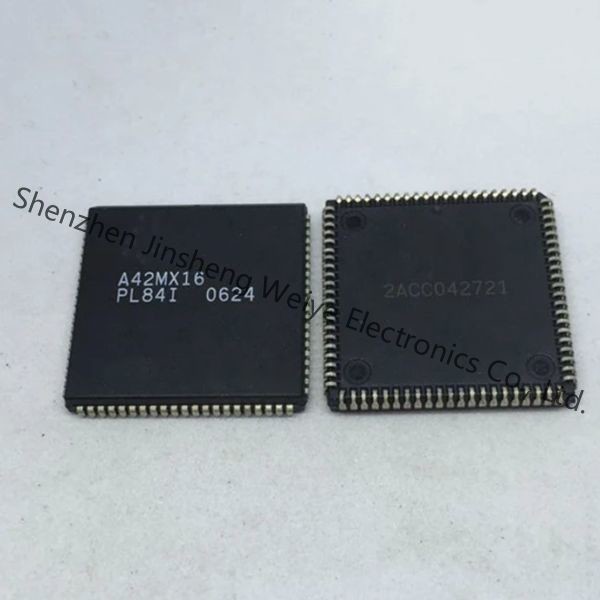

IC FPGA 72 I/O 84PLCC
FPGA 42MX Family 24K Gates 608 Cells 103MHz/172MHz 0.45um
Technology 3.3V/5V 84-Pin PLCC
FPGA - Field Programmable Gate Array MX
