DESCRIPTION
The M74HC4049 is an high speed CMOS HEX BUFFER (INVERTING)
fabricated with silicon gate C2MOS technology.
The internal circuit is composed of 2 stage inverters, which
enables high noise immunity and a stable output.
Input protection circuits are different from those of the high
speed CMOS IC’s.
The Vcc side diodes are designed to allow logic-level conversion
from high-level voltages (up to 13V) to low level voltages.
■ HIGH SPEED: tPD = 8ns (TYP.) at VCC =6V
■ LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C
■ HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)
■ SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 6mA (MIN)
■ BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL
■ WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V
■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4049
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | STMicroelectronics |
| Product Category | Gates and Inverters |
| Series | 74HC |
| Packaging | Alternate Packaging |
| Package-Case | 16-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -55°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Features | - |
| Voltage-Supply | 2 V ~ 6 V |
| Supplier-Device-Package | 16-SO |
| Number-of-Circuits | 6 Circuits |
| Number-of-Inputs | 6 Inputs |
| Quiescent Current | 1μA |
| Current-Output-High-Low | 5.2mA, 5.2mA |
| Max-Propagation-Delay-V-Max-CL | 17ns @ 6V, 150pF |
| Logic-Type | Inverter |
| Logic-Level-Low | 0.5 V ~ 1.8 V |
| Logic-Level-High | 1.5 V ~ 4.2 V |
Form,Package,Functional compatible component
Descriptions

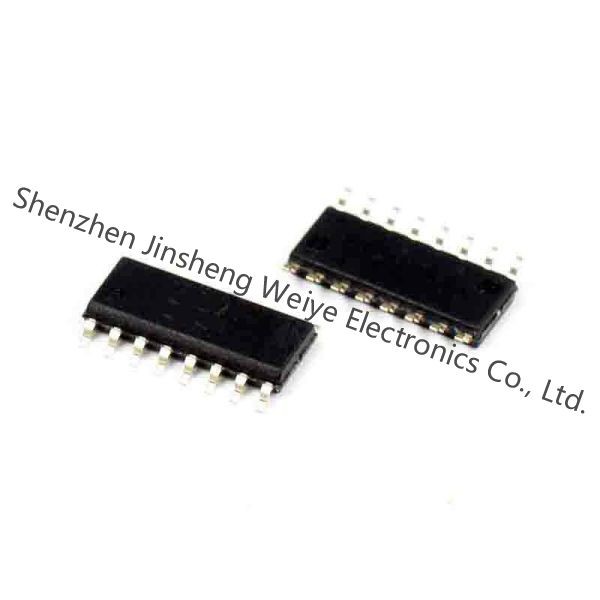

Inverter IC 6 Channel 16-SO
Buffer/Converter 6-CH Inverting CMOS 16-Pin SOP T/R
