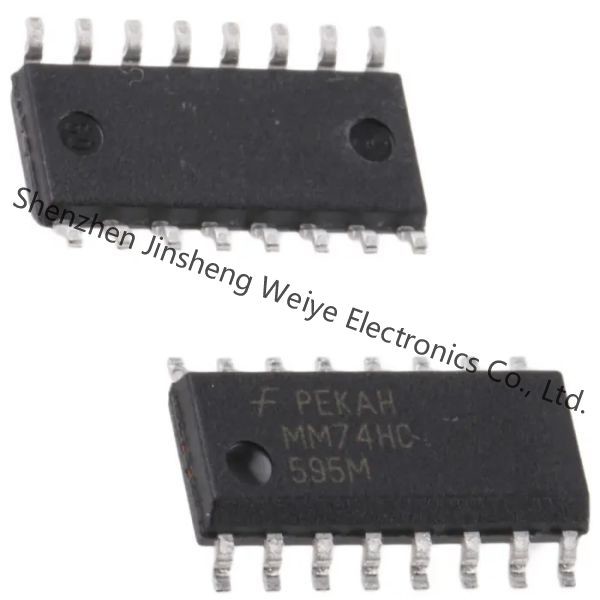

MM74HC595MX Datasheet
Product Details
Description
The MM74HC595 high-speed shift register utilizes advanced
silicon-gate CMOS technology. This device possesses the high noise
immunity and low power consumption of standard CMOS integrated
circuits, as well as the ability to drive 15 LS-TTL loads.
Features
Low Quiescent current: 80µA Maximum (74HC Series)
Low Input Current: 1µA Maximum
8-Bit Serial-In, Parallel-Out Shift Register with Storage
Wide Operating Voltage Range: 2V–6V
Cascadable
Shift Register has Direct Clear
Guaranteed Shift Frequency: DC to 30MHz
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | onsemi |
| Product Category | Shift Registers |
| Series | 74HC |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.005044 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Tri-State |
| Function | Serial to Parallel, Serial |
| Voltage-Supply | 2 V ~ 6 V |
| Supplier-Device-Package | 16-SOIC |
| Number-of-Circuits | 1 Circuit |
| Number-of-Bits | 8 bit |
| Number-of-Elements | 1 Element |
| Logic-Type | Shift Register |
| Number-of-Bits-per-Element | 8 |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2 V to 6 V |
| Part-#-Aliases | MM74HC595MX_NL |
| Supply-Voltage-Max | 6 V |
| Package-Case | SOIC-16 |
| Logic-Family | 74HC |
| Counting-Sequence | Serial to Serial/Parallel |
| Propagation Delay | 294 ns 58 ns 50 ns |
| Number-of-Input-Lines | 1 Input Line |
| Number-of-Output-Lines | 9 Output Lines |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
74HC595D,118
Logic | 74HC(T)595 - 8-bit serial-in, serial or parallel-out shift register
with output latches; 3-state SOP 16-Pin | Nexperia | MM74HC595MX vs 74HC595D,118 |
MM74HC595M
Logic | 8-Bit Shift Registers with Output Latches, 960-TUBE | ON Semiconductor | MM74HC595MX vs MM74HC595M |
SN74HC595D
Logic | 8-Bit Shift Registers With 3-State Output Registers 16-SOIC -40 to
85 | Texas Instruments | MM74HC595MX vs SN74HC595D |
MM74HC595MX
Logic | 8-Bit Shift Registers with Output Latches, 2500-REEL | ON Semiconductor | MM74HC595MX vs MM74HC595MX |
74HC595D
Logic | Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True
Output, CMOS, PDSO16 | Nexperia | MM74HC595MX vs 74HC595D |
74HC595D,112
Logic | 74HC(T)595 - 8-bit serial-in, serial or parallel-out shift register
with output latches; 3-state SOP 16-Pin | Nexperia | MM74HC595MX vs 74HC595D,112 |
74HC594D,118
Logic | 74HC(T)594 - 8-bit shift register with output register SOP 16-Pin | Nexperia | MM74HC595MX vs 74HC594D,118 |
SN74HC595DR
Logic | 8-Bit Shift Registers With 3-State Output Registers 16-SOIC -40 to
85 | Texas Instruments | MM74HC595MX vs SN74HC595DR |
MC74HC595ADG
Logic | Shift Register 3-State, SOIC 16 LEAD, 48-TUBE | ON Semiconductor | MM74HC595MX vs MC74HC595ADG |
MC74HC595ADR2G
Logic | Shift Register 3-State, SOIC 16 LEAD, 2500-REEL | ON Semiconductor | MM74HC595MX vs MC74HC595ADR2G |
Descriptions
IC SHIFT REGISTER 8-BIT 16-SOIC
Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SOIC N
T/R
Counter Shift Registers 8-Bit Shift Register
