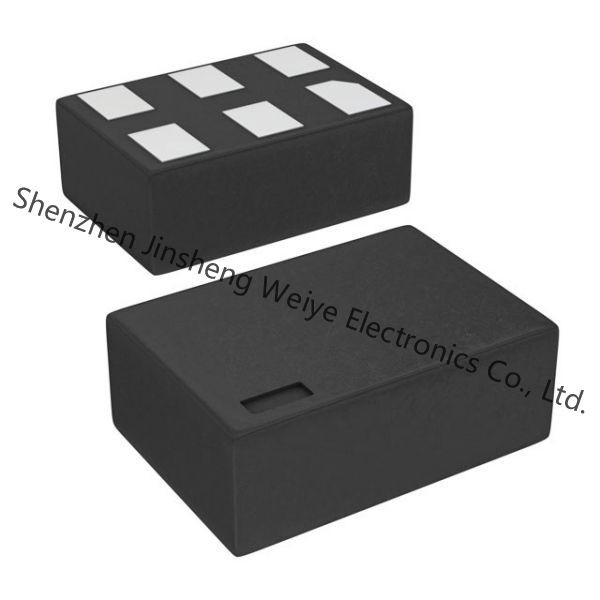

General Description
The NC7SP17 is a single buffer with Schmitt trigger input from
Fairchilds Ultra Low Power (ULP) Series of TinyLogic®. Ideal for
applications where battery life is critical, this product is
designed for ultra low power consumption within the VCC operating
range of 0.9V to 3.6V VCC.
Features
■ 0.9V to 3.6V VCC supply operation
■ 3.6V overvoltage tolerant I/Os at VCC from 0.9V to 3.6V
■ tPD
4.0 ns typ for 3.0V to 3.6V VCC
5.0 ns typ for 2.3V to 2.7V VCC
6.0 ns typ for 1.65V to 1.95V VCC
7.0 ns typ for 1.40V to 1.60V VCC
11.0 ns typ for 1.10V to 1.30V VCC
27.0 ns typ for 0.90V VCC
■ Power-Off high impedance inputs and outputs
■ Static Drive (IOH/IOL)
±2.6 mA @ 3.00V VCC
±2.1 mA @ 2.30V VCC
±1.5 mA @ 1.65V VCC
±1.0 mA @ 1.40V VCC
±0.5 mA @ 1.10V VCC
±20 PA @ 0.9V VCC
■ Uses patented Quiet Series noise/EMI reduction circuitry
■ Ultra small MicroPak Lead (Pb) Free package
■ Ultra low dynamic power
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | onsemi |
| Product Category | Buffers, Drivers, Receivers, Transceivers |
| Series | 7SP |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000698 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-UFDFN |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Number-of-Channels | 1 Channel |
| Voltage-Supply | 0.9 V ~ 3.6 V |
| Supplier-Device-Package | 6-MicroPak |
| Number-of-Elements | 1 Element |
| Current-Output-High-Low | 2.6mA, 2.6mA |
| Logic-Type | Schmitt Trigger - Buffer |
| Number-of-Bits-per-Element | 1 |
| Pd-Power-Dissipation | 8 pF |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Polarity | Non-Inverting |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 0.9 V |
| Package-Case | MicroPak-6 |
| Logic-Family | TinyLogic ULP |
| Propagation Delay | 25.9 ns at 1.2 V 17.8 ns at 1.5 V 14.4 ns at 1.8 V 11.3 ns at 2.5 V
9.2 ns at 3.3 V |
| High-Level-Output-Current | - 2.6 mA |
| Low-Level-Output-Current | 2.6 mA |
| Number-of-Input-Lines | 1 Input |
| Number-of-Output-Lines | 1 Output |
Form,Package,Functional compatible component
Descriptions
Buffer, Non-Inverting 1 Element 1 Bit per Element Push-Pull Output
6-MicroPak
Schmitt Trigger Buffer 1-CH Non-Inverting CMOS 6-Pin MicroPak T/R
Buffers & Line Drivers Sgl Buff Sch Trigger
