General Description
The NC7WZ08 is a dual 2-Input AND Gate from Fairchilds Ultra High
Speed Series of TinyLogic£. The device is fabricated with advanced
CMOS technology to achieve ultra high speed with high output drive
while maintaining low static power dissipation over a very broad
VCC operating range. The device is specified to operate over the
1.65V to 5.5V VCC range. The inputs and output are high impedance
when VCC is 0V. Inputs tolerate voltages up to 7V independent of
VCC operating voltage.
Features
■ Space saving US8 surface mount package

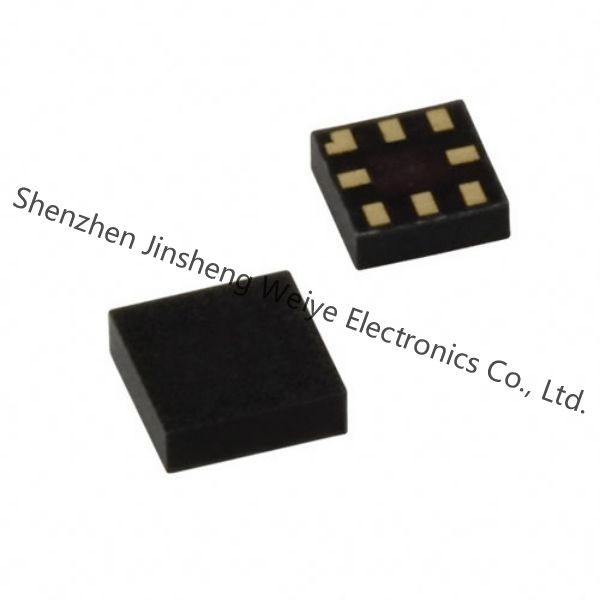

■ MicroPak¥ Pb-Free leadless package
■ Ultra High Speed; tPD 2.5 ns Typ into 50 pF at 5V VCC
■ High Output Drive; ±24 mA at 3V VCC
■ Broad VCC Operating Range; 1.65V to 5.5V
■ Matches the performance of LCX when operated at 3.3V VCC
■ Power down high impedance inputs/output
■ Overvoltage tolerant inputs facilitate 5V to 3V translation
■ Patented noise/EMI reduction circuitry implemented
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | onsemi |
| Product Category | Gates and Inverters |
| Series | 7WZ |
| Product | Single-Function Gate |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000882 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-UFQFN |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Features | - |
| Voltage-Supply | 1.65 V ~ 5.5 V |
| Supplier-Device-Package | 8-MicroPak? |
| Number-of-Circuits | 2 Circuits |
| IC Number of Gates | 2 Gate |
| Number-of-Inputs | 2 Inputs |
| Quiescent Current | 1μA |
| Current-Output-High-Low | 32mA, 32mA |
| Max-Propagation-Delay-V-Max-CL | 3.7ns @ 5V, 50pF |
| Logic-Type | AND Gate |
| Logic-Level-Low | - |
| Logic-Level-High | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Part-#-Aliases | NC7WZ08L8X_NL |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.65 V |
| Package-Case | MicroPak |
| Logic-Family | NC7WZ |
| Propagation Delay | 4.8 ns |
| High-Level-Output-Current | - 32 mA |
| Low-Level-Output-Current | 32 mA |
| Number-of-Input-Lines | 2 Input |
| Number-of-Output-Lines | 1 Output |
| Logic-Function | AND |
Form,Package,Functional compatible component
Descriptions
AND Gate IC 2 Channel 8-MicroPak?
AND Gate 2-Element 2-IN CMOS 8-Pin MicroPak T/R
Logic Gates Dl 2-Input AND Gate
