LFEC1E-3TN144C Datasheet
Product Details
Introduction
The LatticeECP/EC family of FPGA devices is optimized to deliver
mainstream FPGA features at low cost. For maximum performance and
value, the LatticeECP™ (EConomy Plus) FPGA concept combines an
efficient FPGA fabric with high-speed dedicated functions.
Lattice’s first family to implement this approach is the
LatticeECPDSP™ (EConomy Plus DSP) family, providing dedicated
high-performance DSP blocks on-chip. The LatticeEC™ (EConomy)
family supports all the general purpose features of LatticeECP
devices without dedicated function blocks to achieve lower cost
solutions.
Features
■ Extensive Density and Package Options
• 1.5K to 32.8K LUT4s
• 65 to 496 I/Os
• Density migration supported
■ sysDSP™ Block (LatticeECP™ Versions)
• High performance multiply and accumulate
• 4 to 8 blocks
− 4 to 8 36x36 multipliers or
– 16 to 32 18x18 multipliers or
− 32 to 64 9x9 multipliers
■ Embedded and Distributed Memory
• 18 Kbits to 498 Kbits sysMEM™ Embedded Block RAM (EBR)
• Up to 131 Kbits distributed RAM
• Flexible memory resources:
− Distributed and block memory
■ Flexible I/O Buffer
• Programmable sysI/O™ buffer supports wide range of interfaces:
− LVCMOS 3.3/2.5/1.8/1.5/1.2
− LVTTL
− SSTL 3/2 Class I, II, SSTL18 Class I
− HSTL 18 Class I, II, III, HSTL15 Class I, III
− PCI
− LVDS, Bus-LVDS, LVPECL, RSDS
■ Dedicated DDR Memory Support
• Implements interface up to DDR400 (200MHz)
■ sysCLOCK™ PLLs
• Up to four analog PLLs per device
• Clock multiply, divide and phase shifting
■ System Level Support
• IEEE Standard 1149.1 Boundary Scan, plus ispTRACY™ internal logic
analyzer capability
• SPI boot flash interface
• 1.2V power supply
■ Low Cost FPGA
• Features optimized for mainstream applications
• Low cost TQFP and PQFP packaging
Specifications
|
| Attribute | Attribute Value |
|---|
| Manufacturer | Lattice Semiconductor |
| Product Category | FPGAs (Field Programmable Gate Array) |
| Series | EC |
| Package-Case | 144-LQFP |
| Operating-Temperature | 0°C ~ 85°C (TJ) |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 1.14 V ~ 1.26 V |
| Supplier-Device-Package | 144-TQFP (20x20) |
| IC Number of Gates | |
| Number-of-I-O | 97 I/O |
| Number-of-LABs-CLBs | |
| Number-of-Logic-Elements-Cells | 1500 |
| Total-RAM-Bits | 18432 Bits |
|
Form,Package,Functional compatible component
Descriptions

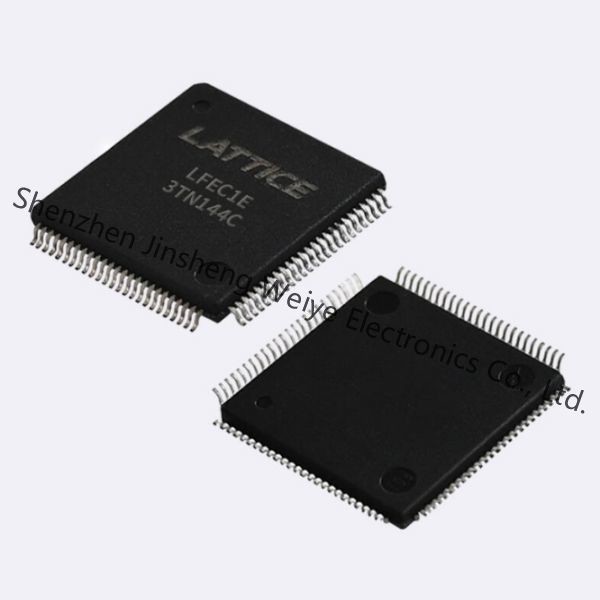

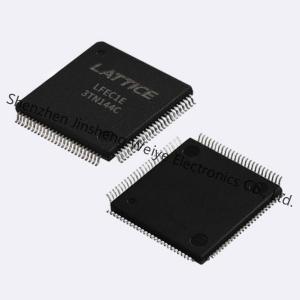

IC FPGA 97 I/O 144TQFP
FPGA LatticeEC Family 1500 Cells 340MHz 130nm Technology 1.2V
144-Pin TQFP
