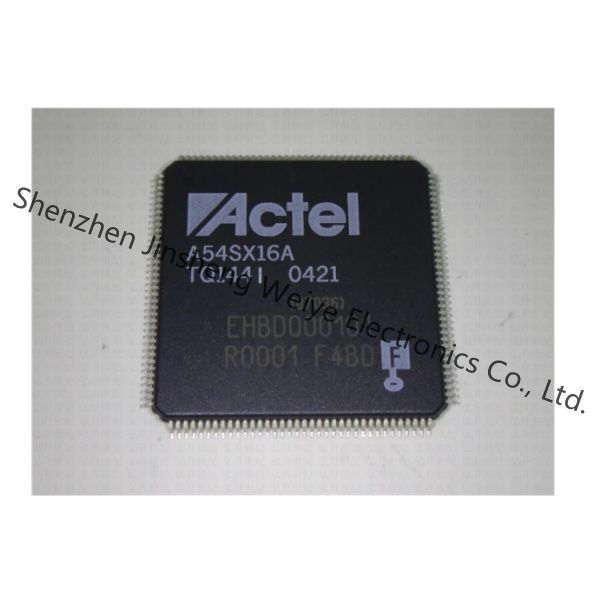

A54SX16A-TQ144I Datashee
Product Details
Features
• Hot-Swap Compliant I/Os
• Power-Up/Down Friendly (No Sequencing Required for Supply
Voltages)
• 66 MHz PCI Compliant
• Nonvolatile, Single-Chip Solution
• Configurable I/O Support for 3.3 V / 5 V PCI, 5 V TTL, 3.3 V
LVTTL, 2.5 V LVCMOS2
• 2.5 V, 3.3 V, and 5 V Mixed-Voltage Operation with 5 V Input
Tolerance and 5 V Drive Strength
• Devices Support Multiple Temperature Grades
• Configurable Weak-Resistor Pull-Up or Pull-Down for I/O at
Power-Up
• Individual Output Slew Rate Control
• Up to 100% Resource Utilization and 100% Pin Locking
• Deterministic, User-Controllable Timing
• Unique In-System Diagnostic and Verification Capability with
Silicon Explorer II
• Boundary-Scan Testing in Compliance with IEEE Standard 1149.1
(JTAG)
• Actel Secure Programming Technology with FuseLock™ Prevents
Reverse Engineering and Design Theft
Leading-Edge Performance
• 250 MHz System Performance
• 350 MHz Internal Performance
Specifications
• 12,000 to 108,000 Available System Gates
• Up to 360 User-Programmable I/O Pins
• Up to 2,012 Dedicated Flip-Flops
• 0.22 μ / 0.25 μ CMOS Process Technology
Specifications
|
| Attribute | Attribute Value |
|---|
| Manufacturer | Microchip Technology |
| Product Category | FPGAs (Field Programmable Gate Array) |
| Series | SX-A |
| Unit-Weight | 0.046530 oz |
| Mounting-Style | SMD/SMT |
| Tradename | Actel |
| Package-Case | 144-LQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 2.25 V ~ 5.25 V |
| Supplier-Device-Package | 144-TQFP (20x20) |
| IC Number of Gates | 24000 |
| Number-of-I-O | 113 I/O |
| Number-of-LABs-CLBs | 1452 |
| Number-of-Logic-Elements-Cells | |
| Total-RAM-Bits | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2.5 V |
| Maximum-Operating-Frequency | 227 MHz |
| Package-Case | TQFP-144 |
| Input/output | 113 I/O |
|
Form,Package,Functional compatible component
Descriptions
IC FPGA 113 I/O 144TQFP
FPGA SX-A Family 16K Gates 924 Cells 227MHz 0.25um Technology 2.5V
144-Pin TQFP
FPGA - Field Programmable Gate Array SXA
