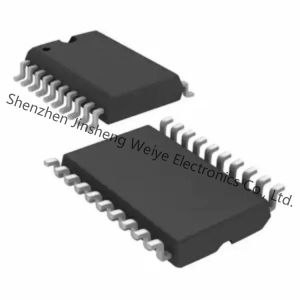

AD7928BRUZ-REEL7 Data Converter IC ADC Analog To Digital Converters

Ask Lasest Price
Brand Name :	Analog Devices
Model Number :	AD7928BRUZ-REEL7
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

AD7928BRUZ-REEL7 Data Converter IC ADC Analog To Digital Converters

AD7928BRUZ-REEL7 Datasheet

Product Details

GENERAL DESCRIPTION

The AD7908/AD7918/AD7928 are, respectively, 8-bit, 10-bit, and 12-bit, high speed, low power, 8-channel, successive approximation ADCs. The parts operate from a single 2.7 V to 5.25 V power supply and feature throughput rates up to 1 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 8 MHz.

FEATURES

Fast throughput rate: 1 MSPS
Specified for AVDD of 2.7 V to 5.25 V
Low power
6.0 mW max at 1 MSPS with 3 V supply
13.5 mW max at 1 MSPS with 5 V supply
Eight (single-ended) inputs with sequencer
Wide input bandwidth
AD7928, 70 dB min SINAD at 50 kHz input frequency
Flexible power/serial clock speed management
No pipeline delays
High speed serial interface SPI®/QSPI™/
MICROWIRE™/DSP compatible
Shutdown mode: 0.5 μA max
20-lead TSSOP package
Qualified for automotive applications

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Analog to Digital Converters (ADC)
Series	AD7928
Product	Analog to Digital Converters
Type	S/H ADC
Packaging	Alternate Packaging
Unit-Weight	0.006737 oz
Mounting-Style	SMD/SMT
Package-Case	20-TSSOP (0.173", 4.40mm Width)
Input-Type	Single Ended
Operating-Temperature	-40°C ~ 85°C
Features	-
Number-of-Channels	8 Channel
Supplier-Device-Package	20-TSSOP
Sampling-Rate-Per-Second	1M
Data-Interface	SPI, DSP
Number-of-Bits	12 Bits
Voltage-Supply-Analog	2.7 V ~ 5.25 V
Voltage-Supply-Digital	2.7 V ~ 5.25 V
Configuration	MUX-S/H-ADC
Architecture	SAR
Number-of-Inputs	8 Inputs
Resolution	12 bit
Reference-Type	External
Ratio-S-H:ADC	1899/12/30 1:01:00
Number-of-A-D-Converters	1
Pd-Power-Dissipation	13.5 mW
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Interface-Type	Serial SPI
SNR-Signal-to-Noise-Ratio	70 dB
Package-Case	TSSOP-20
Gain-Error	+/- 1.5 LSB
Number-of-Converters	1 Converter
Sampling-Rate	1 MS/s
INL-Integral-Nonlinearity	+/- 1 LSB
DNL-Differential-Nonlinearity	+/- 1.5 LSB

Manufacturer Part#	Description	Manufacturer	Compare
AD7928BRU-REEL7	8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO20, MO-153AC, TSSOP-20	Rochester Electronics LLC	AD7928BRUZ-REEL7 vs AD7928BRU-REEL7
Converters
AD7928BRU-REEL	IC 8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO20, MO-153AC, TSSOP-20, Analog to Digital Converter	Analog Devices Inc	AD7928BRUZ-REEL7 vs AD7928BRU-REEL
Converters
AD7928WYRUZ-REEL7	IC 8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO20, ROHS COMPLIANT, MO-153AC, TSSOP-20, Analog to Digital Converter	Analog Devices Inc	AD7928BRUZ-REEL7 vs AD7928WYRUZ-REEL7
Converters
AD7928BRU	8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO20, MO-153AC, TSSOP-20	Rochester Electronics LLC	AD7928BRUZ-REEL7 vs AD7928BRU
Converters
AD7928BRUZ	8-Channel, 1 MSPS, 12-Bit ADC with Sequencer in 20-Lead TSSOP	Analog Devices Inc	AD7928BRUZ-REEL7 vs AD7928BRUZ
Converters
AD7928BRUZ-REEL	8-Channel, 1 MSPS, 12-Bit ADC with Sequencer in 20-Lead TSSOP	Analog Devices Inc	AD7928BRUZ-REEL7 vs AD7928BRUZ-REEL
Converters

Descriptions

12 Bit Analog to Digital Converter 8 Input 1 SAR 20-TSSOP

Octal Channel Single ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP T/R

Analog to Digital Converters - ADC 8CH 1 MSPS 12-Bit W/ Sequencer
