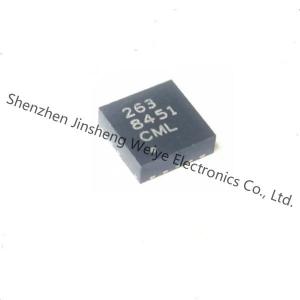

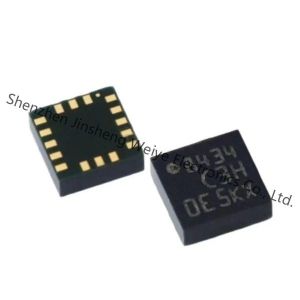

AD5689BCPZ-RL7 Data Converter IC DAC 16 Bit 2 Channel SPI NanoDAC+

Ask Lasest Price
Brand Name :	Analog Devices
Model Number :	AD5689BCPZ-RL7
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

AD5689BCPZ-RL7 Data Converter IC DAC 16 Bit 2 Channel SPI NanoDAC+

AD5689BCPZ-RL7 Datasheet

Product Details

GENERAL DESCRIPTION

The AD5689/AD5687 members of the nanoDAC+™ family are low power, dual, 16-/12-bit, buffered voltage output digital-to-analog converters (DACs). The devices include a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The AD5689/AD5687 operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.

FEATURES

High relative accuracy (INL): ±2 LSB maximum at 16 bits
Tiny package: 3 mm × 3 mm, 16-lead LFCSP
TUE: ±0.1% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.1% of FSR maximum
High drive capability: 20 mA, 0.5 V from supply rails
User-selectable gain of 1 or 2 (GAIN pin)
Reset to zero scale or midscale (RSTSEL pin)
1.8 V logic compatibility
50 MHz SPI with readback or daisy chain
Low glitch: 0.5 nV-sec
Robust 4 kV HBM and 1.5 kV FICDM ESD ratings
Low power: 3.3 mW at 3 V
2.7 V to 5.5 V power supply
−40°C to +105°C temperature range

APPLICATIONS

Optical transceivers
Base station power amplifiers
Process control (PLC I/O cards)
Industrial automation
Data acquisition systems

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Digital to Analog Converters (DAC)
Series	nanoDAC+®
Product	Digital to Analog Converters
Packaging	Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	16-WFQFN Exposed Pad, CSP
Operating-Temperature	-40°C ~ 105°C
Output-Type	Voltage - Buffered
Number-of-Channels	2 Channel
Supplier-Device-Package	16-LFCSP-WQ (3x3)
Data-Interface	SPI
Number-of-Bits	16 Bits
Voltage-Supply-Analog	2.7 V ~ 5.5 V
Voltage-Supply-Digital	1.8 V ~ 5.5 V
Architecture	String DAC
Resolution	16 bit
Reference-Type	External
Number-of-D-A-Converters	2
Settling-Time	8μs
Differential-Output	No
INL-DNL-LSB	±1, ±1 (Max)
Maximum Operating Temperature	+ 105 C
Operating temperature range	- 40 C
Operating-Supply-Current	590 uA
Interface-Type	Serial SPI
SNR-Signal-to-Noise-Ratio	90 dB
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.7 V
Package-Case	LFCSP-16
Number-of-Converters	2 Converter
Reference-Voltage	1 V
DNL-Differential-Nonlinearity	1 LSB

Descriptions

16 Bit Digital to Analog Converter 2 16-LFCSP-WQ (3x3)

DAC 2-CH Resistor-String 16-bit 16-Pin LFCSP EP T/R

Digital to Analog Converters - DAC Dual 16-Bit 2-CH w/ SPI INTERFACE
