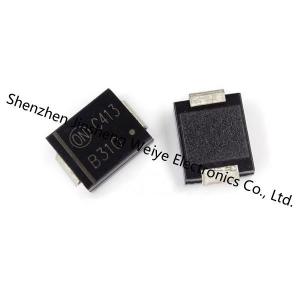

MBRS3100T3G Discrete Semiconductors Schottky Diodes & Rectifiers 3A 100V

Ask Lasest Price
Brand Name :	ROHM Semiconductor
Model Number :	MBRS3100T3G
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

MBRS3100T3G Discrete Semiconductors Schottky Diodes & Rectifiers 3A 100V

MBRS3100T3G Datasheet

Product Details

DESCRIPTION

The LT®3975 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 42V. Low quiescent current design consumes only 2.7µA of supply current while regulating with no load. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping the output ripple below 15mV in a typical application. The LT3975 can supply up to 2.5A of load current and has current limit foldback to limit power dissipation during short circuit. A low dropout voltage of 500mV is maintained when the input voltage drops below the programmed output voltage, such as during automotive cold crank.

FEATURES

■ Ultralow Quiescent Current: 2.7µA IQ at 12VIN to 3.3VOUT
■ Low Ripple Burst Mode® Operation Output Ripple < 15mVP-P
■ Wide Input Range: Operation from 4.3V to 42V
■ 2.5A Maximum Output Current
■ Excellent Start-Up and Dropout Performance
■ Adjustable Switching Frequency: 200kHz to 2MHz
■ Synchronizable Between 250kHz to 2MHz
■ Accurate Programmable Undervoltage Lockout
■ Low Shutdown Current: IQ = 700nA
■ Power Good Flag
■ Soft-Start Capability
■ Thermal Shutdown Protection
■ Current Limit Foldback with Soft-Start Override
■ Saturating Switch Design: 75mΩ On Resistance
■ Small, Thermally Enhanced 16-Lead MSOP Package

APPLICATIONS

■ Automotive Battery Regulation
■ Portable Products
■ Industrial Supplies

Specifications

Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	Diodes, Rectifiers - Single
Series	MBRS3100T3
Product	Schottky Diodes
Packaging	Alternate Packaging
Unit-Weight	0.010582 oz
Mounting-Style	SMD/SMT
Package-Case	DO-214AB, SMC
Technology	Si
Mounting-Type	Surface Mount
Supplier-Device-Package	SMC
Configuration	Single
Speed	Fast Recovery = 200mA (Io)
Diode-Type	Schottky
Current-Reverse-Leakage-Vr	50μA @ 100V
Voltage-Forward-Vf-Max-If	790mV @ 3A
Voltage-DC-Reverse-Vr-Max	100V
Current-Average-Rectified-Io	3A
Reverse-Recovery-Time-trr	-
Capacitance-Vr-F	-
Operating-Temperature-Junction	-65°C ~ 175°C
Maximum Operating Temperature	+ 175 C
Operating temperature range	- 65 C
Vf-Forward-Voltage	0.9 V at 6 A
Ir-Reverse-Current	50 uA
If-Forward-Current	3 A
Vrrm-Repetitive-Reverse-Voltage	100 V
Ifsm-Forward-Surge-Current	130 A

Manufacturer Part#	Description	Manufacturer	Compare
MBRS3100T3	Schottky Power Rectifier, Surface Mount, 3.0 A, 100 V, SMC, 2500-REEL	ON Semiconductor	MBRS3100T3G vs MBRS3100T3
Diodes

Descriptions

Diode Schottky 100V 3A Surface Mount SMC

Diode Schottky 100V 3A Automotive 2-Pin SMC T/R

Schottky Diodes & Rectifiers 3A 100V
