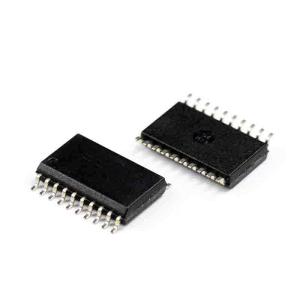

74ABT541CSCX Buffers & Line Drivers Octal Buf/Line Drv

Ask Lasest Price
Brand Name :	onsemi
Model Number :	74ABT541CSCX
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

74ABT541CSCX Buffers & Line Drivers Octal Buf/Line Drv

74ABT541CSCX Datasheet

Product Details

General Description

The ABT541 is an octal buffer and line driver with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The ABT541 is similar to the ABT244 with broad side pinout.

Features

■ Non-inverting buffers
■ Output sink capability of 64 mA, source capability of 32 mA
■ Guaranteed output skew
■ Guaranteed multiple output switching specifications
■ Output switching specified for both 50 pF and 250 pF loads
■ Guaranteed simultaneous switching, noise level and
dynamic threshold performance
■ Guaranteed latchup protection
■ High impedance, glitch free bus loading during entire
power up and power down cycle
■ Nondestructive hot insertion capability
■ Flow-through pinout for ease of PC board layout
■ Disable time less than enable time to avoid bus contention

Specifications

Attribute	Attribute Value

Manufacturer	onsemi
Product Category	Buffers, Drivers, Receivers, Transceivers
Series	74ABT
Packaging	Tape & Reel (TR)
Package-Case	20-SOIC (0.295", 7.50mm Width)
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Voltage-Supply	4.5 V ~ 5.5 V
Supplier-Device-Package	20-SOIC
Number-of-Elements	1 Element
Current-Output-High-Low	32mA, 64mA
Logic-Type	Buffer/Line Driver, Non-Inverting
Number-of-Bits-per-Element	8

Descriptions

Buffer, Non-Inverting 1 Element 8 Bit per Element Push-Pull Output 20-SOIC

Buffer/Line Driver 8-CH Non-Inverting 3-ST BiCMOS 20-Pin SOIC W T/R
