NC7SV157L6X Datasheet

Product Details

General Description

The NC7SV157 is a single 2-Input Non-inverting Multiplexer from Fairchild’s Ultra Low Power-A (ULP-A) Series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This prod uct is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation.

Features

■ 0.9V to 3.6V VCC supply operation
■ 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V
■ Extremely High Speed tPD
1.5 ns typ for 2.7V to 3.6V VCC
2.0 ns typ for 2.3V to 2.7V VCC
3.0 ns typ for 1.65V to 1.95V VCC
4.0 ns typ for 1.4V to 1.6V VCC
8.0 ns typ for 1.1V to 1.3V VCC
16.0 ns typ for 0.9V VCC
■ Power-Off high impedance inputs and outputs
■ High Static Drive (IOH/IOL)
±24 mA @ 3.00V VCC
±18 mA @ 2.30V VCC
±6 mA @ 1.65V VCC
±4 mA @ 1.4V VCC
±2 mA @ 1.1V VCC
±0.1 mA @ 0.9V VCC
■ Uses patented Quiet Series noise/EMI reduction circuitry

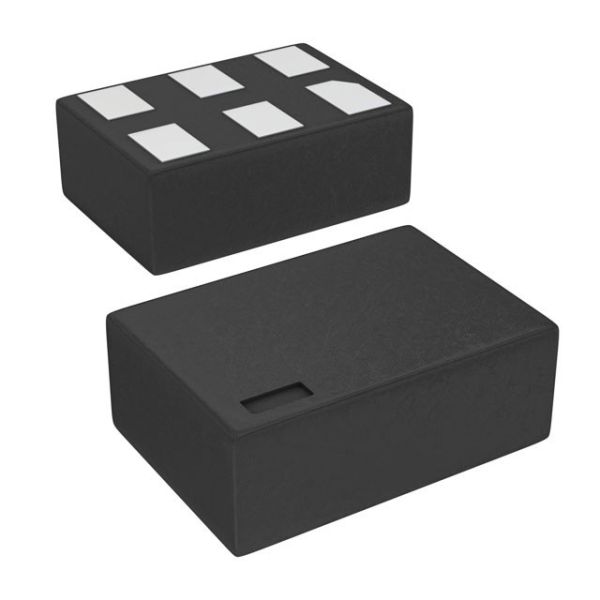

■ Ultra small MicroPak leadfree package
■ Ultra low dynamic power

Specifications
