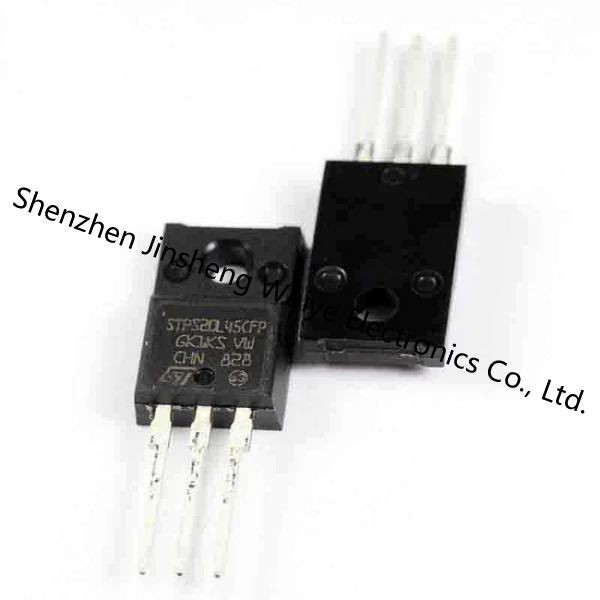

STPS20L45CFP Schottky Diodes & Rectifiers Lo drop Pwr Schottky rectifier

Ask Lasest Price
Brand Name :	STMicroelectronics
Model Number :	STPS20L45CFP
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

STPS20L45CFP Schottky Diodes & Rectifiers Lo drop Pwr Schottky rectifier

STPS20L45CFP Datasheet

Product Details

DESCRIPTION

Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters.
These devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.

FEATURES AND BENEFITS

■ Low forward voltage drop meaning very small conduction losses
■ Low switching losses allowing high frequency operation
■ Insulated package: ISOWATT220AB, TO-220FPAB
Insulating voltage = 2000V DC
Capacitance = 12pF

Specifications

Attribute	Attribute Value

Manufacturer	STMicroelectronics
Product Category	Diodes, Rectifiers - Arrays
Series	STPS20L45C
Product	Schottky Rectifiers
Packaging	Tube
Unit-Weight	0.081130 oz
Mounting-Style	Through Hole
Package-Case	TO-220-3 FP
Technology	Si
Configuration	Dual Common Cathode
Maximum Operating Temperature	+ 150 C
Operating temperature range	- 65 C
Vf-Forward-Voltage	0.73 V
Ir-Reverse-Current	200 uA
If-Forward-Current	20 A
Vrrm-Repetitive-Reverse-Voltage	45 V
Ifsm-Forward-Surge-Current	180 A

Descriptions

Diode Array 1 Pair Common Cathode Schottky 45V 10A Through Hole TO-220-3 Full Pack

Diode Schottky 45V 20A 3-Pin(3+Tab) TO-220FPAB Tube

Schottky Diodes & Rectifiers Lo drop Pwr Schottky rectifier

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
6-TSSOP,
