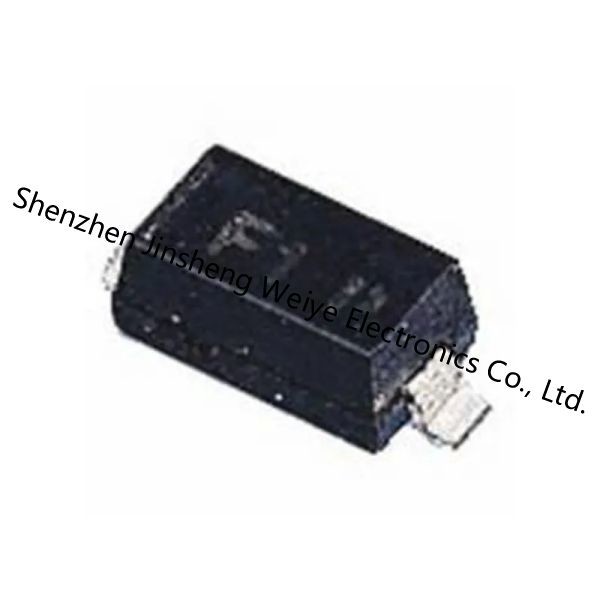

MMSZ5250B-7-F Single Diodes And Rectifiers 500mW Power Dissipation

Ask Lasest Price
Brand Name :	Diodes Incorporated
Model Number :	MMSZ5250B-7-F
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

MMSZ5250B-7-F Single Diodes And Rectifiers 500mW Power Dissipation

MMSZ5250B-7-F Datasheet

Product Details

500mW SURFACE MOUNT ZENER DIODE

Features

500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Lead Free/RoHS Compliant (Note 2)
Qualified to AEC-Q101 Standards for High Reliability

Specifications

Attribute	Attribute Value

Manufacturer	Diodes Incorporated
Product Category	Zener Diodes - Single
Series	MMSZ525
Packaging	Alternate Packaging
Unit-Weight	0.000353 oz
Mounting-Style	SMD/SMT
Height	1.35 mm
Length	2.85 mm
Width	1.7 mm
Package-Case	SOD-123
Operating-Temperature	-65°C ~ 150°C
Mounting-Type	Surface Mount
Supplier-Device-Package	SOD-123
Configuration	Single
Tolerance	±5%
Power-Max	500mW
Voltage-Zener-Nom-Vz	20V
Impedance-Max-Zzt	25 Ohm
Current-Reverse-Leakage-Vr	100nA @ 15V
Voltage-Forward-Vf-Max-If	900mV @ 10mA
Pd-Power-Dissipation	500 mW
Maximum Operating Temperature	+ 150 C
Operating temperature range	- 65 C
Vz-Zener-Voltage	20 V
Voltage-Tolerance	5 %
Zener-Current	6.2 mA
Zz-Zener-Impedance	25 Ohms
Ir-Reverse-Current	100 nA

Descriptions

Zener Diode 20V 500mW ±5% Surface Mount SOD-123

Diode Zener Single 20V 5% 500mW Automotive 2-Pin SOD-123 T/R

Zener Diodes 20V 500mW
