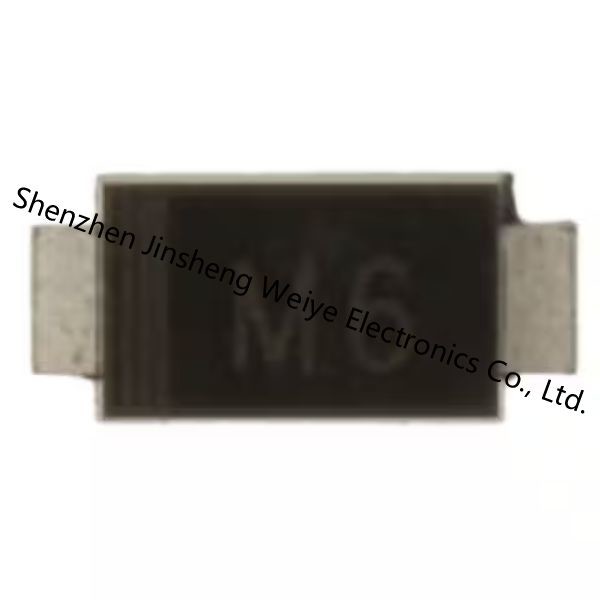

SMD26PL-TP Schottky Surface Mount Diodes And Rectifiers Alternate Packaging

Ask Lasest Price
Brand Name :	Micro Commercial Components (MCC)
Model Number :	SMD26PL-TP
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

SMD26PL-TP Schottky Surface Mount Diodes And Rectifiers Alternate Packaging

SMD26PL-TP Datasheet

Product Details

[Raychem Circuit Protection]

Specifications

Attribute	Attribute Value
Manufacturer	Micro Commercial Components (MCC)
Product Category	Diodes, Rectifiers - Single
Series	SMD26
Product	Schottky Diodes
Packaging	Alternate Packaging
Unit-Weight	0.000413 oz
Mounting-Style	SMD/SMT
Package-Case	SOD-123F
Technology	Si
Mounting-Type	Surface Mount
Supplier-Device-Package	SOD-123FL
Speed	Fast Recovery = 200mA (Io)
Diode-Type	Schottky
Current-Reverse-Leakage-Vr	500μA @ 60V
Voltage-Forward-Vf-Max-If	700mV @ 2A
Voltage-DC-Reverse-Vr-Max	60V
Current-Average-Rectified-Io	2A
Reverse-Recovery-Time-trr	-
Capacitance-Vr-F	210pF @ 4V, 1MHz
Operating-Temperature-Junction	-65°C ~ 125°C
Pd-Power-Dissipation	1.68 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 65 C
If-Forward-Current	2 A
Vrrm-Repetitive-Reverse-Voltage	60 V
Ifsm-Forward-Surge-Current	50 A

Descriptions

Diode Schottky 60V 2A Surface Mount SOD-123FL

Diode Schottky 60V 2A 2-Pin SOD-123FL T/R

Schottky Diodes & Rectifiers Diode 60V 50A
