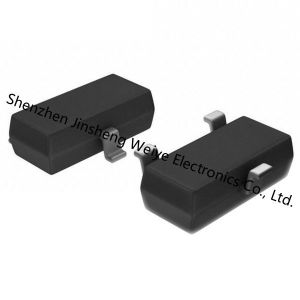

BAS16-TP Diodes - General Purpose, Power, Switching 300mA 100V

Ask Lasest Price
Brand Name :	Micro Commercial Components (MCC)
Model Number :	BAS16-TP
Certification :	ROHS
Price :	Contact us !
Payment Terms :	Paypal, Western Union, TT
Supply Ability :	50000 Pieces per Day
Delivery Time :	Send email to learn lead time

Add to Cart

Product Details
Company Profile

BAS16-TP Diodes - General Purpose, Power, Switching 300mA 100V

BAS16-TP Datasheet

Product Details

Features

• Low Current Leakage
• Low Cost
• Small Outline Surface Mount Package
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1

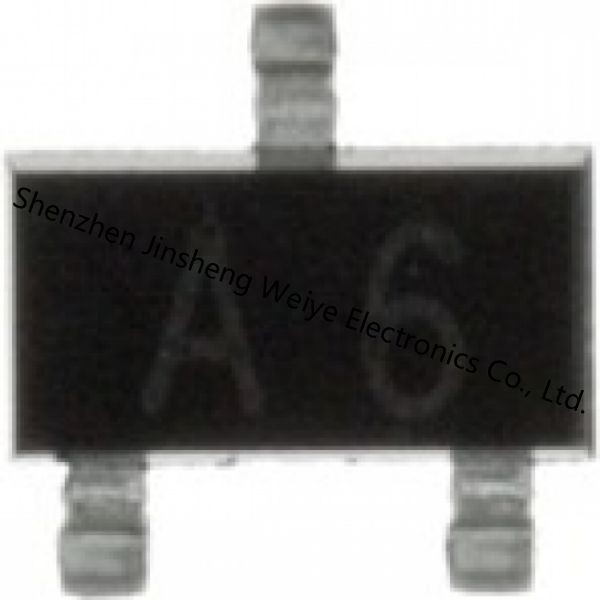

• Marking :A6

Specifications

Attribute	Attribute Value
Manufacturer	Micro Commercial Components (MCC)
Product Category	Diodes, Rectifiers - Single
Series	-
Packaging	Alternate Packaging
Package-Case	TO-236-3, SC-59, SOT-23-3
Mounting-Type	Surface Mount
Supplier-Device-Package	SOT-23
Speed	Fast Recovery = 200mA (Io)
Diode-Type	Standard
Current-Reverse-Leakage-Vr	1μA @ 75V
Voltage-Forward-Vf-Max-If	1.25V @ 150mA
Voltage-DC-Reverse-Vr-Max	75V
Current-Average-Rectified-Io	300mA (DC)
Reverse-Recovery-Time-trr	4ns
Capacitance-Vr-F	2pF @ 0V, 1MHz
Operating-Temperature-Junction	-55°C ~ 150°C

Descriptions

Diode Standard 75V 300mA (DC) Surface Mount SOT-23

Diode Switching 100V 0.3A 3-Pin SOT-23 T/R
