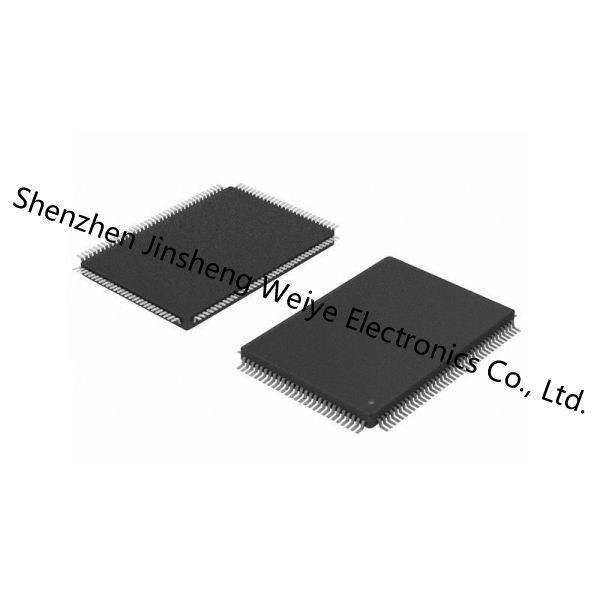

KSZ8842-32MQL Datasheet
Product Details
General Description
The KSZ8842-series of 2-port switches includes PCI and non-PCI CPU
interfaces, and are available in 8/16-bit and 32-bit bus designs
(see Ordering Information). This datasheet describes the
KSZ8842M-series of non-PCI CPU interface chips. For information on
the KSZ8842 PCI CPU interface switches, refer to the KSZ8842P
datasheet.
Features
Switch Management
• Non-blocking switch fabric assures fast packet delivery by
utilizing a 1K entry forwarding table
• Fully compliant with IEEE 802.3u standards
• Full-duplex IEEE 802.3x flow control (Pause) with force mode
option
• Half-duplex back pressure flow control
Advanced Switch Management
• IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN
IDs)
• VLAN ID tag/untag options, on a per port basis
• IEEE 802.1p/Q tag insertion or removal on a per port basis
(egress)
• Programmable rate limiting at the ingress and egress ports
• Broadcast storm protection
• IEEE 802.1d spanning tree protocol support
• MAC filtering function to filter or forward unknown unicast
packets
• Direct forwarding mode enabling the processor to identify the
ingress port and to specify the egress port
• Internet Group Management Protocol (IGMP) v1/v2 snooping support
for multicast packet filtering
• IPV6 Multicast Listener Discovery (MLD) snooping support
Monitoring
• Port mirroring/monitoring/sniffing: ingress and/or egress traffic
to any port
• MIB counters for fully compliant statistics gathering – 34 MIB
counters per port
• Loopback modes for remote failure diagnostics
Comprehensive Register Access
• Control registers configurable on-the-fly (port-priority,
802.1p/d/Q)
QoS/CoS Packets Prioritization Support
• Per port, 802.1p and DiffServ-based
• Remapping of 802.1p priority field on a per port basis
Power Modes, Packaging, and Power Supplies
• Full-chip hardware power-down (register configuration not saved)
allows low power dissipation
• Per port-based, software power-save on PHY (idle link detection,
register configuration preserved)
• Single power supply: 3.3V
• Commercial Temperature Range: 0°C to +70°C
• Industrial Temperature Range: –40°C to +85°C (see Ordering
Information)
• Available in 128-pin PQFP and 100-ball LFBGA (optional package:
128-pin LQFP)
• Available in –16 version for 8/16-bit bus support and – 32
version for 32-bit bus support (see Ordering Information).
Additional Features
In addition to offering all of the features of an integrated
Layer-2 managed switch, the KSZ8842M offers:
• Repeater mode capabilities to allow for cut through in latency
critical industrial Ethernet or embedded Ethernet applications
• Dynamic buffer memory scheme – Essential for applications such as
Video over IP where image jitter is unacceptable
• 2-port switch with a flexible 8, 16, or 32-bit generic host
processor interfaces
• Micrel LinkMD™ cable diagnostics to determine cable length,
diagnose faulty cables, and determine distance-to-fault
• Hewlett Packard (HP) Auto-MDIX crossover with disable and enable
options
• Four priority queues to handle voice, video, data, and control
packets
• Ability to transmit and receive jumbo frame sizes up to 1916
bytes
Applications
• Video Distribution Systems
• High-end Cable, Satellite, and IP set-top boxes
• Video over IP
• Voice over IP (VoIP) and Analog Telephone Adapters (ATA)
• Industrial Control in Latency Critical Applications
• Motion Control
• Industrial Control Sensor Devices (Temperature, Pressure, Levels,
and Valves)
• Security and Surveillance Cameras
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | Microchip Technology |
| Product Category | Network Interface Card (NIC) |
| Series | KSZ8842 |
| Product | Ethernet Switches |
| Packaging | Tray |
| Mounting-Style | SMD/SMT |
| Package-Case | 128-BFQFP |
| Operating-Temperature | 0°C ~ 70°C |
| Function | Switch |
| Interface | Parallel |
| Voltage-Supply | 3.1 V ~ 3.5 V |
| Supplier-Device-Package | 128-PQFP (14x20) |
| Current-Supply | 122mA |
| Protocol | Ethernet |
| Standards | 10/100 Base-T/TX PHY |
| Data-Rate | 10 Mb/s 100 Mb/s |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Operating-Supply-Voltage | 3.3 V |
| Standard | 10Base-T 100Base-TX |
| Interface-Type | MII |
| Supply-Current-Max | 122 mA |
| Supply-Voltage-Max | 3.5 V |
| Supply-Voltage-Min | 3.1 V |
| Package-Case | PQFP-128 |
| Number-of-Transceivers | 2 Transceiver |
Descriptions
Ethernet Switch 10/100 Base-T/TX PHY Parallel Interface 128-PQFP
(14x20)
Ethernet Switch 2-Port 100Mbps 128-Pin PQFP Tray
Ethernet ICs 2-Port Ethernet Switch/Repeater + Generic (32-bit) Bus
Interface
