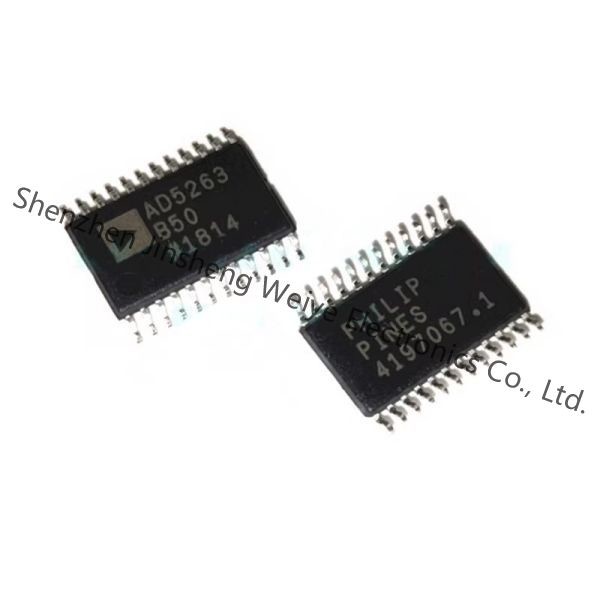

AD5263BRUZ50 Datasheet
Product Details
GENERAL DESCRIPTION
The AD5263 is the industry’s first quad-channel, 256-position,
digital potentiometer1 with a selectable digital interface. This
device performs the same electronic adjustment function as
mechanical potentiometers or variable resistors, with enhanced
resolution, solid-state reliability, and superior low temperature
coefficient performance.
Each channel of the AD5263 offers a completely programmable value
of resistance between the A terminal and the wiper or between the B
terminal and the wiper. The fixed A-to-B terminal resistance of 20
kΩ, 50 kΩ, or 200 kΩ has a nominal temperature coefficient of ±30
ppm/°C and a ±1% channel-to-channel matching tolerance. Another key
feature of this part is the ability to operate from +4.5 V to +15
V, or at ±5 V.
FEATURES
256-position, 4-channel
End-to-end resistance 20 kΩ, 50 kΩ, 200 kΩ
Pin-selectable SPI®- or I2C®-compatible interface
Power-on preset to midscale
Two package address decode pins AD0 and AD1
Rheostat mode temperature coefficient 30 ppm/°C
Voltage divider temperature coefficient 5 ppm/°C
Wide operating temperature range –40°C to +125°C
10 V to 15 V single supply; ±5 V dual supply
APPLICATIONS
Mechanical potentiometer replacement
Optical network adjustment
Instrumentation: gain, offset adjustment
Stereo channel audio level control
Automotive electronics adjustment
Programmable power supply
Programmable filters, delays, time constants
Line impedance matching
Low resolution DAC/trimmer replacement
Base station power amp biasing
Sensor calibration
Specifications
| Attribute | Attribute Value |
|---|
| Manufacturer | Analog Devices |
| Product Category | Digital Potentiometers |
| Series | - |
| Packaging | Tube Alternate Packaging |
| Package-Case | 24-TSSOP (0.173", 4.40mm Width) |
| Operating-Temperature | -40°C ~ 125°C |
| Features | Selectable Address |
| Interface | I2C, SPI |
| Voltage-Supply | 4.5 V ~ 16.5 V, ±4.5 V ~ 7.5 V |
| Supplier-Device-Package | 24-TSSOP |
| Number-of-Circuits | 4 Circuits |
| Taper | Linear |
| Configuration | Potentiometer |
| Number-of-Taps | 256 Taps |
| Resistance-Ohms | 50k |
| Memory-Type | Volatile |
| Tolerance | ±30% |
| temperature coefficient | 30 ppm/°C |
| Resistance-Wiper-Ohms-Typ | 60 |
Descriptions
Digital Potentiometer 50kOhm 256POS Volatile Log Automotive 24-Pin
TSSOP Tube
