Description

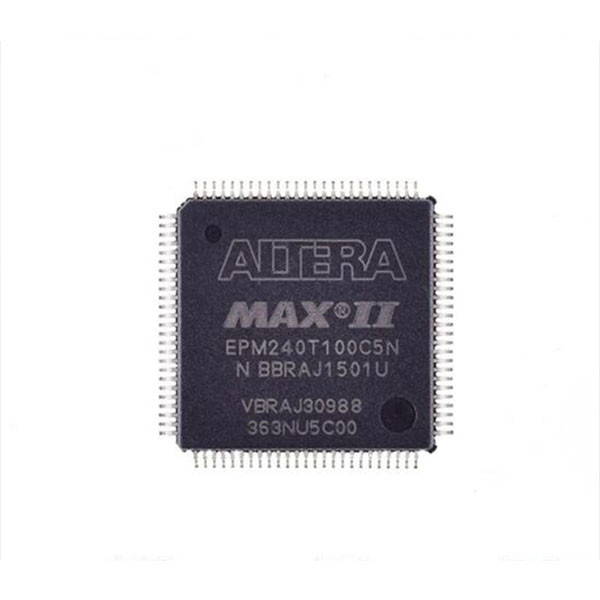

The EPM240T100C5N is a MAX II instant-on non volatile CPLD with speed grade 5 in 100 pin TQFP package. It is based on 0.18µm, 6 layer metal flash process with non volatile storage of 8Kbits. MAX II device offers high I/O counts, fast performance and reliability. It has MultiVolt core, user flash memory (UFM) block and enhanced in-system programmability (ISP). MAX II device is designed to reduce cost and power while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR), sequencing control and device configuration control.

Features

Worst case pin to pin delay (tpd) of 4.7ns
MultiVolt core external supply voltage of 3.3V, 2.5V
240 logic elements (LE)
192 macrocells
80 maximum user I/O pins
Operating junction temperature range from 0°C to 85°C
Standby current as low as 25µA
Maximum global clock frequency of 201.1MHz for 16bit counter
Supports hot socketing
ISP circuitry compliant with IEEE std 1532

0.5 V to VCC + 0.5 V

Datasheet

You can download the datasheet the link given below.

EPM240T100C5N​Datasheet
